Instant Organic Caves (IOC)

A high-performance, strictly programmatic voxel environment generator for Unreal Engine 5.7.

Intro video 1 (really old and basic)
Update video 1

There is an updated + supported version at Fab if interested

📖 Overview

Instant Organic Caves (IOC) is a plugin designed to generate massive, seamless, and organic cave systems procedurally at runtime. Unlike traditional marketplace assets that rely on static meshes or Blueprint construction scripts, IOC utilizes a purist C++ approach.

It builds geometry directly using Unreal's FDynamicMesh3 core math libraries, bypassing overhead from the Blueprint VM and intermediate wrapper libraries. The result is a system that can generate infinite, seamless, Nanite-enabled environments suitable for high-fidelity production.

Comparison	GitHub version (0.1+ MIT)	FAB edition (0.3+ Closed)
Version	Core	Fully featured + updated
Distribution	Source only	Binaries, vetted by Epic
Engine support	UE 5.7.0	UE 5.6 - 5.7.3+
Procedural Perlin caves/tunnels	Included	Included
Cellular automata caves	Included	Included

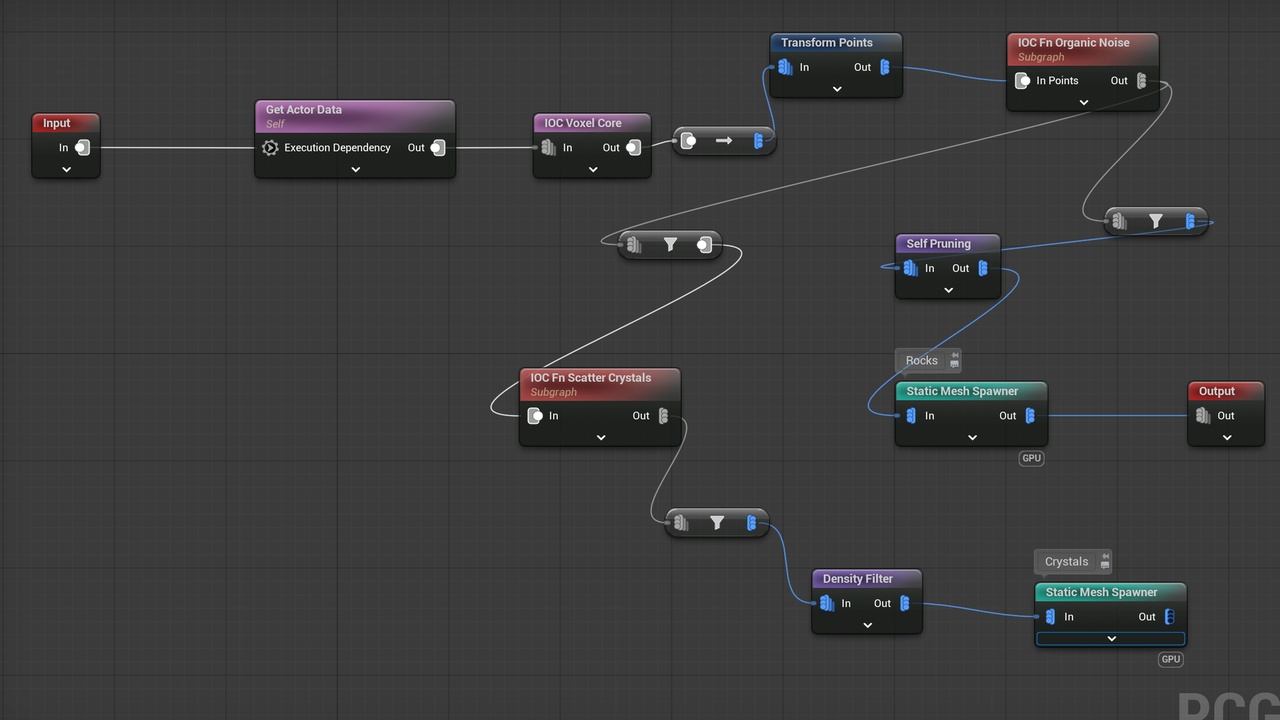

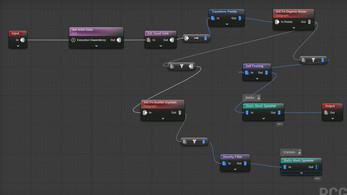

PCG Integration	Included	Included
Edge falloff / Clean shells	Included	Included
Debug visualization	Included	Included
Multi-Spline Branching	n/a	Included
Infinite/tileable cellular automata	n/a	Included
Domain warp & terraces	n/a	Included
Async generation	n/a	Included
Async decoration scattering	n/a	Included
LOD mesh generation	n/a	Included
Complex-as-Simple Collision	n/a	Included
Streaming Manager	n/a	Included
Auto UV's	n/a	Included
Runtime Carving API	n/a	Included
Carving Volume Component	n/a	Included
5 Built-in Presets	n/a	Included
Smart Vertex Colors	n/a	Included
Updates	n/a	Regular, vetted by Epic
Quality Assurance	GitHub Issues	Vetted by Epic, tested by author
Support	GitHub Issues	Forum & Email

✨ Key Features

• Pure C++ Architecture: No dependency on Blueprint logic, PCG Graphs, or external assets. The geometry is calculated mathematically from scratch.
• Direct Dynamic Mesh Manipulation: Operates directly on UE::Geometry::FDynamicMesh3 for maximum performance.
• Infinite World Generation: Supports seamless chunk tiling using world-space Perlin Noise.
• Organic Smoothing: Implements custom, stable Laplacian Smoothing to convert blocky voxel grids into smooth, eroded cavern walls.
• Welded Topology: Custom meshing algorithm ensures watertight geometry with no internal faces, preventing shading artifacts and mesh tearing.
• Nanite & Lumen Ready: programmatically enables Nanite support on generated meshes.

📦 Installation

1. Prerequisites: Unreal Engine 5.7 (Source or Launcher) and Visual Studio 2022.
2. Clone: Clone this repository into your project's Plugins folder:

   YourProject/Plugins/InstantOrganicCaves

3. Regenerate: Right-click your .uproject file and select Generate Visual Studio Project Files.
4. Build: Open the solution in Visual Studio and build the project. The plugin handles dependencies on GeometryCore, DynamicMesh, and PhysicsCore automatically.
5. Enable: Launch the Editor, go to Edit > Plugins, and ensure Instant Organic Caves is enabled.

🚀 Quick Start

1. Single Chunk Generation

1. In a New Scene, open the Place Actors panel.
2. Search for IOCProceduralActor.
3. Drag it into the viewport.
4. A cave chunk will generate immediately. Use the Details Panel to adjust settings like Seed, Roughness, and Cave Size.

2. Infinite World Generation

1. Search for IOCWorldGenerator in the Class list.
2. Drag it into the level.
3. In the Details Panel:
   • Set Chunk Class to IOCProceduralActor.
   • Set Render Distance (e.g., 2 for a 5x5 grid).
   • Set Update Interval (e.g., 0.5 seconds).
4. Press Play. As the camera moves, new cave chunks will form ahead of you seamlessly.

⚙️ Configuration Guide

The IOCProceduralActor exposes several critical parameters to control the algorithm:

Generation Settings

Parameter	Default	Description
Grid Size	60	The resolution of the chunk (X, Y, Z). Higher values = more detail but higher RAM usage.
Voxel Size	100.0	The size of a single logic unit in World Space (cm).
Dimensions	60,60,60	Allows for non-cubic chunks (e.g., creating long corridors).

Noise & Shape

Parameter	Default	Description
Noise Scale	2500.0	Critical. Controls the size of the tunnels. • 2500+: Large, open caverns. • 1000: Tight, winding tunnels. • <100: Will cause white noise/fragmentation.
Noise Threshold	0.5	The "Air vs. Solid" cutoff. Lower values make thicker walls.
Fill Probability	0.45	Impact of the initial cellular automata seeding pass.

Organic Processing

Parameter	Default	Description
Smooth Iterations	5	How many times the Laplacian smoothing kernel runs. • 0: Minecraft/Blocky look. • 5: Organic/Melted rock look.
Surface Roughness	1.0	Adds jitter to vertices before smoothing to simulate natural erosion.

🧠 Technical Architecture

Calculations differ from standard Marching Cubes to allow for specific artistic styles:

1. Noise Sampling: We sample 3D Perlin Noise in World Space. To prevent "Integer Lattice" artifacts (zebra striping), coordinate sampling is jittered by a prime-number vector offset.
2. Cellular Automata: A pass of 3D Cellular Automata runs on the voxel data to clean up noise and form coherent structures.
3. Face Culling & Welding:
   • The mesher iterates over the grid.
   • Faces are only generated if a solid voxel neighbors an air voxel.
   • Crucial: A VertexMap is employed to reuse vertex indices. This "Welds" the mesh topology, ensuring that adjacent cubes share vertices. This allows the smoothing algorithm to act on the mesh as a continuous skin rather than separate blocks.
4. Laplacian Smoothing: A custom, dependency-free smoothing algorithm iterates over the vertex connectivity graph, relaxing vertex positions toward the average of their neighbors to create organic curves.

⚠️ Troubleshooting / FAQ

Q: The mesh looks shattered or like floating confetti.

• A: Your Noise Scale is likely too low relative to your Voxel Size. If the noise frequency is too high, the algorithm generates isolated, single-voxel islands that collapse during smoothing. Increase Noise Scale to 2500.0 or higher.

Q: I see "Zebra Stripes" or repeating patterns.

• A: This is Perlin harmonic alignment. Ensure you are using the latest version of the code which includes the Origin coordinate jitter fix in GenerateCave().

Q: Collision isn't working.

• A: IOC uses ComplexAsSimple for collision. Ensure your Player Pawn has a valid collision capsule and physics are enabled.

🤝 Contributing

This is an open-source project. Pull requests are welcome, particularly for:

• Async background thread generation (TaskGraph integration).
• LOD handling for the Infinite World Generator.
• Biomes support (varying noise parameters based on world position).

📜 License

Distributed under the MIT License. See LICENSE for more information.
