OmniWalk (Core) | Arbitrary Gravity & Magnetic Boots Framework for UE5.5+

OmniWalk is a high-performance C++ framework designed to solve the technical "Showstoppers" of non-Z-up locomotion in Unreal Engine. It delivers a "Zero-Config" solution for Ratchet & Clank style surface adhesion on arbitrary meshes.

Bugtesting continues on this MIT version, but only the Fab version is production-ready at all times.

Example video 1

Update video 1

Update video 2
Update video 3

Manual
Extension Modules Manual

Comparison	Core GitHub version (0.1+ MIT)	Full FAB edition (0.3+ Closed)
Version	Core	Fully featured + updated
Distribution	Source only	Binaries, vetted by Epic
Engine support	UE 5.7.0	UE 5.6 - 5.7.2+
Gravity-relative camera	Included	Included
Angle handling	Included	Included
Arbitrary gravity, Wall walking	Included	Included
Wall sliding with input resistance	n/a	Included
Dedicated dismount & Sprinting	n/a	Included
Grace periods, Coyote time	n/a	Included
Planetary gravity (0.3)	n/a	Included as subsystem
Spider Walk / Convex Traversal	n/a	Included
4 Magnetic Boots States (0.3)	n/a	Included
Volumetric Gravity System (0.3)	n/a	Included
Trigger Zones (0.3)	n/a	Included
Physics Field (0.3)	n/a	Included
Replication	n/a	Included
Code Access	Public scripts	Full implementation + samples
Updates	n/a	Regular, vetted by Epic
Quality Assurance	GitHub Issues	Vetted by Epic, tested by author
Support	GitHub Issues	Forum & Email

🚀 Key Technical USPs

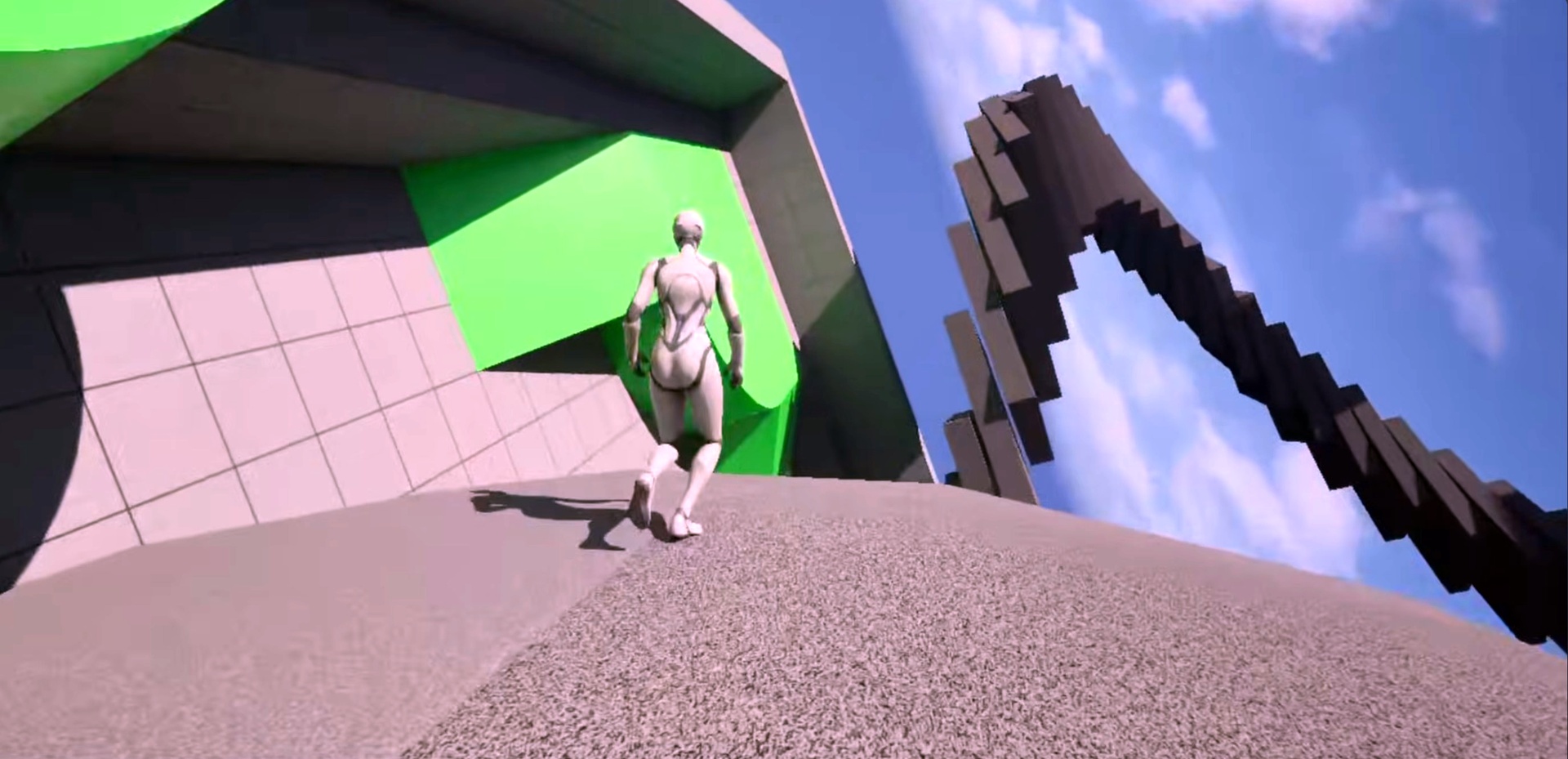

• Arbitrary surface walking by driving SetGravityDirection from live surface normals (walls, ceilings, spheres).
• Surface detection and transition logic (multi‑point traces, wall detection, normal averaging, cooldown smoothing).
• Adhesion force to prevent popping off convex or inverted geometry.
• Gravity‑relative input mapping so movement aligns to the camera on any surface.
• Native 5.4+ Integration: Deeply integrated with UCharacterMovementComponent::SetGravityDirection for frame-perfect physics integration.
• The "Singular Component": No-code setup. Automatically hijacks Pawn settings, stabilizes camera gimbals, and remaps input vectors to surface planes.
• Gimbal-Free Solver: Custom camera modifier logic eliminates control inversion and view-locking at ±90° pitch.
• Surface-Projected Input: Intercepts and re-projects movement inputs onto triangle normals to prevent "capsule pinning" against vertical walls.

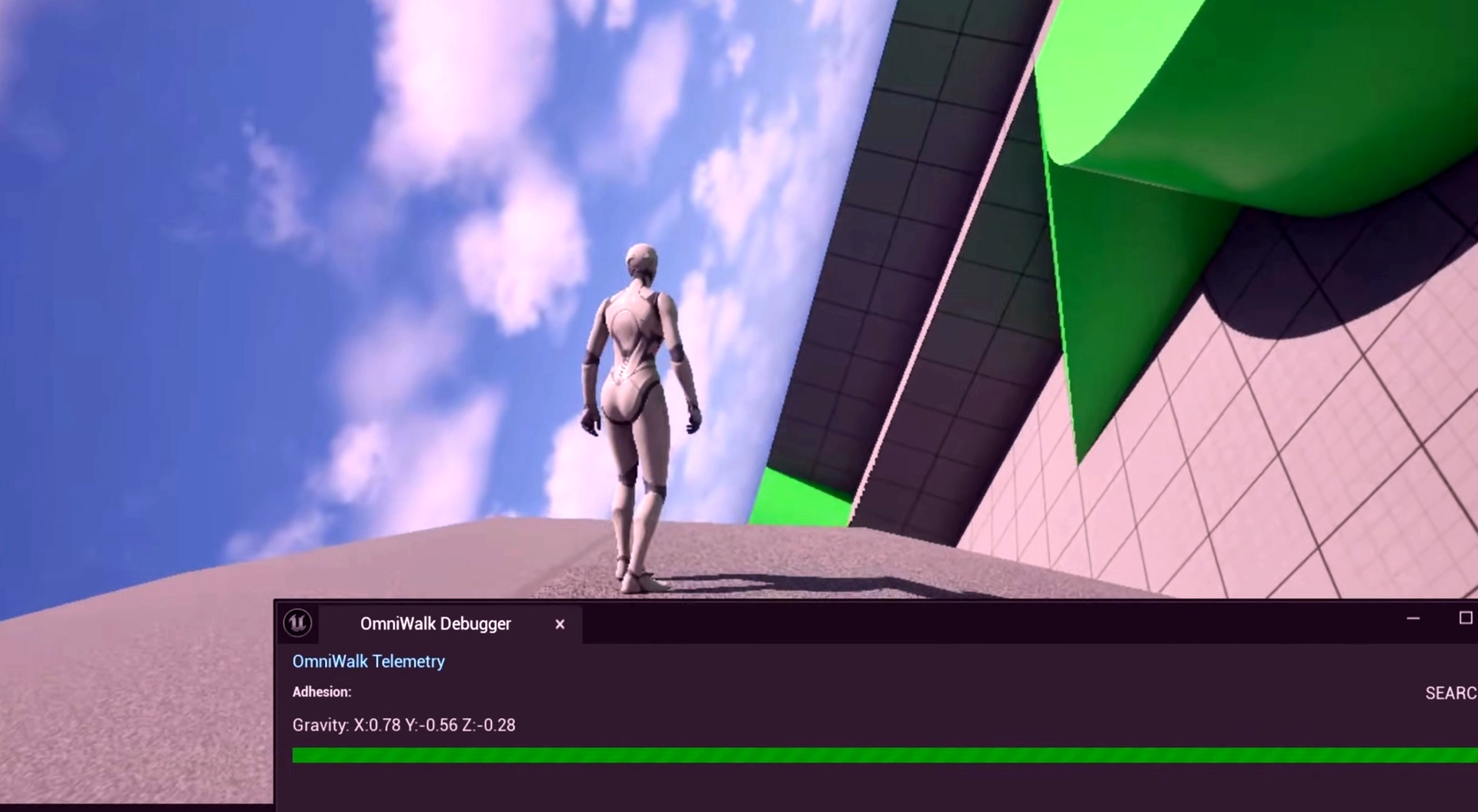

• Slate Telemetry: Dedicated editor debugger for real-time visualization of gravity vectors and alignment quality.
• Strafe/Follow toggle that works correctly under arbitrary gravity.
• Auto‑injection via tags for no‑code adoption in levels.
• Editor tools (example level generator, debugger telemetry).

🛠 Setup and Usage

In UE 5.7, please setup your Character like this:

Add Component: Attach UOmniWalkPro to any ACharacter.

Tag (Optional): Add actor tag OmniWalk.Enabled for subsystem auto-injection.

Play: Move toward any surface. The framework handles orientation, gravity redefinition, and camera stabilization automatically.

To toggle between Strafing (facing camera) and Orient to Movement (facing travel), please use the Orient Rotation To Movement switch on the component.

🧠 Architectural Insights

OmniWalk ticks in the TG_PrePhysics group, ensuring that the redefined gravity vector is utilized by the CharacterMovementComponent during the current frame's integration. It utilizes Slerp-normalized Quaternions for orientation to avoid Euler singularities inherent in traditional platformer movement.

📄 License

Distributed under the MIT License. See LICENSE for more information.
